Description
Flood Gate Flood Barrier Design
Neoprene sleeve gasket creates a seal to stop water from coming in a door!

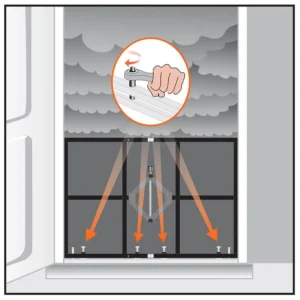

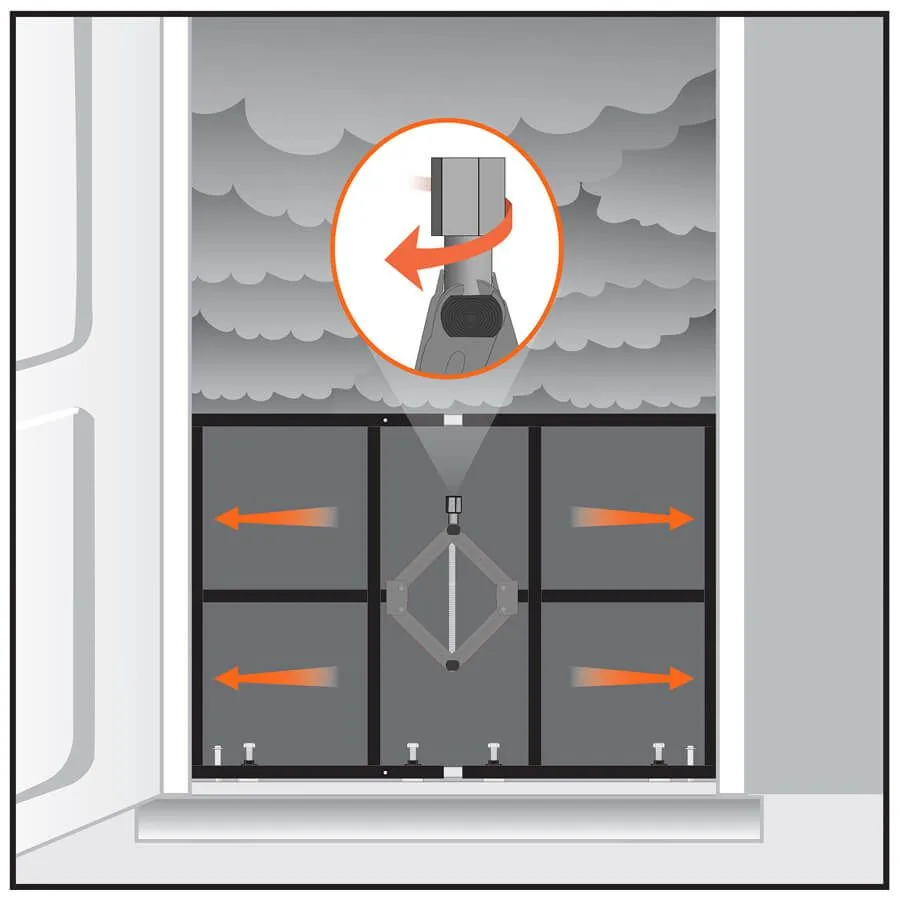

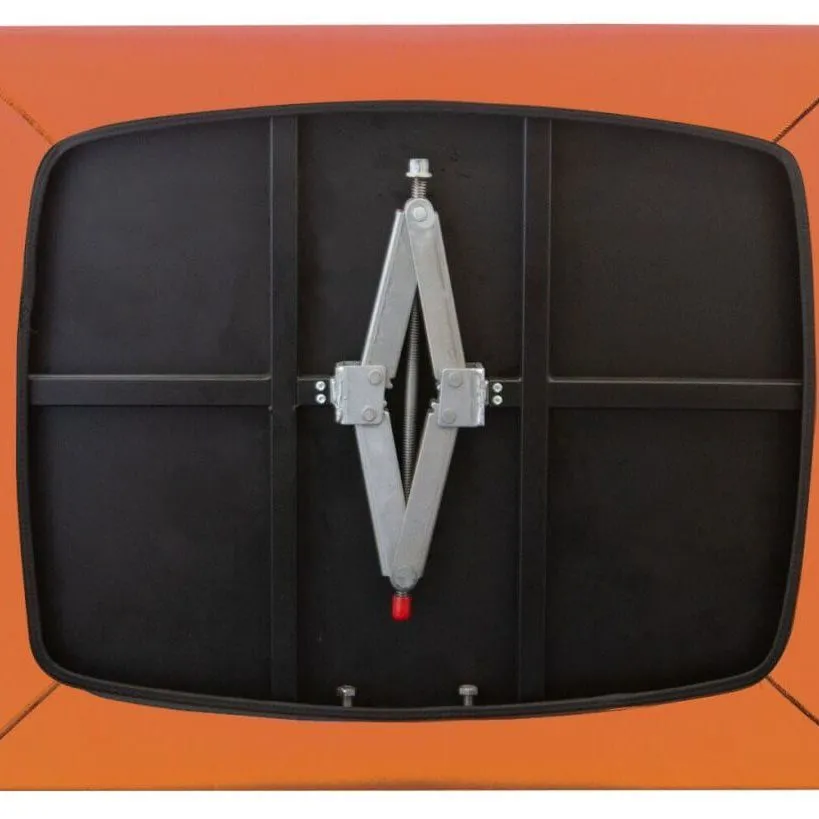

This product is combrised of 1” Steel tube frame for structure & support, .125in steel plates for support & take the weight of the water, internal 1.5ton scissor jack for expansion and a neoprene sleeve for a watertight seal. Also included in the package will be an expansion tool, ratchet wrench & instruction manual
QUESTION: Can multiple units be joined together to create wider protection?
ANSWER: Yes, these units can be joined together in 2-way and 3-way configurations lengthwise, at right angles, or ‘U-Shapes’ around doorways as required with the additional installation of ground anchoring Stanchions.
QUESTION: What if the door I am protecting is flush with the outer wall and there is no door frame for this product to fit into? Can I still use this product?
ANSWER: Yes, although this product fits within most doorways without requiring extra anchoring requirements, Side Rails are available which can be attached to a structure that will give the Flood Gate the capability of anchoring to the structure. This allows us to protect almost any doorway or opening!
FloodGate Instructions & Operator Manual 2019 PDF Download
Flood Gate Flood Barrier FEATURES
- Blocks entryways from water
- Easily installed in minutes
- No alterations to your home required (for most openings)
- Can be used on doors that open in or open out.
- Entryway remains accessible while in use
- Flood protection up to 26” high
- Adjusts for openings from 25” to 50” wide
- Units can be joined together with additional Stanchions
- Capable of 2-way and 3-way joins
- Neoprene sleeve creates water tight seal
- Simple, Fast, Easy, Robust and Economical Protection!
STANDARD PRODUCT SIZES
| Protective Height | Protective Width | Item Number |
|---|---|---|
| 26″ | 25″–30″ | QDFG25 |
| 26″ | 30″–35″ | QDFG30 |
| 26″ | 35″–40″ | QDFG35 |
| 26″ | 40″–45″ | QDFG40 |
| 26″ | 45″–50″ | QDFG45 |
